All That You Need to Know About Overload Spring Bump Stops

Keeping bump travel limited. And also sidestepping nose production. That’s what the bump stops need to work on. And it does so by staying close to the wheel travel end.

Right on the protective tubes above part, you’ll find the housing holding the components for stop together. There are other responsibilities that the bump stops have as well.

For instance, it needs to keep the shock absorber and suspension system in a good shape. The bottoming out blow is also slower due to the existence of bump stops. And that plays a great role in protecting not just the vehicle but also the rider.

Clearly, this one is a crucial element of a vehicle.

Today let’s talk about overload spring bump stops. To give you a slight idea, there’s an upper overload spring that along with a bump stop makes sure the suspension is working right.

Closer Look at Overload Spring Bump Stops

So, by now you clearly know what the element is exactly. Now bump stops are ideal for people who need riding comfort while exploring tough and uneven surfaces. Also, it works for those who want to maintain additional protection to the suspension system.


Clearly, if the part becomes worn out or needs replacement, then you must be able to tell that as soon as possible. Also making the replacement is something you must be well aware of. Something we’ll talk about in the next segments.

How to Tell If You Need to Replace?

There are a few signs that basically says that you need to replace bump stops. Let’s find out:

  1. The first one is pretty obvious. The rides will be less like what they used to be. And that means comfort-wise you are going to feel some shortage. By now, you should already know that one of the primary jobs of the bump stop is to ensure a comfortable ride.
    And the vehicle reducing that element just indicates that there could be something wrong with the bump stops. The uncomfortable feeling will be prominent during driving through potholes and bumps on road.
  2. Another sign is trailer sway. The bump stop also increases the roll stability whenever there’s any vehicle movement sensible by them. But when the part cracks, there could be some swaying notable with the trailer.
    Passing heavy trucks and noticing trailer drifts is a strong sign that you need to replace the bump stops.
  3. There can be suspension sag when the bump stops have worn out. And this is even true for heavy load hauling. As the bump stop needs to absorb all the weight to make sure there’s no bottoming out.
    A lower deflection in the rear or front suspension due to carrying heavy loads, if you notice this then most probably this is the case of damaged bump stops.
  4. Another key attribute of bump stop is conducting proper weight distribution. So that there’s better steering flexibility as well as less wear on tires as well as brakes. Basically, this assists in vehicle leveling.
    However, if you notice a lean on corves and corners, then make sure the bump stops are not the culprit behind so. Because there’s a good chance. Otherwise, there will be a heavy risk of vehicle flipping or even losing control during drives.

Squeaky Noise Overload Spring Bump Stops Problem

Let’s also talk about a very common overload spring bump stops problem that could be the reason you are visiting a piece of writing like this one.

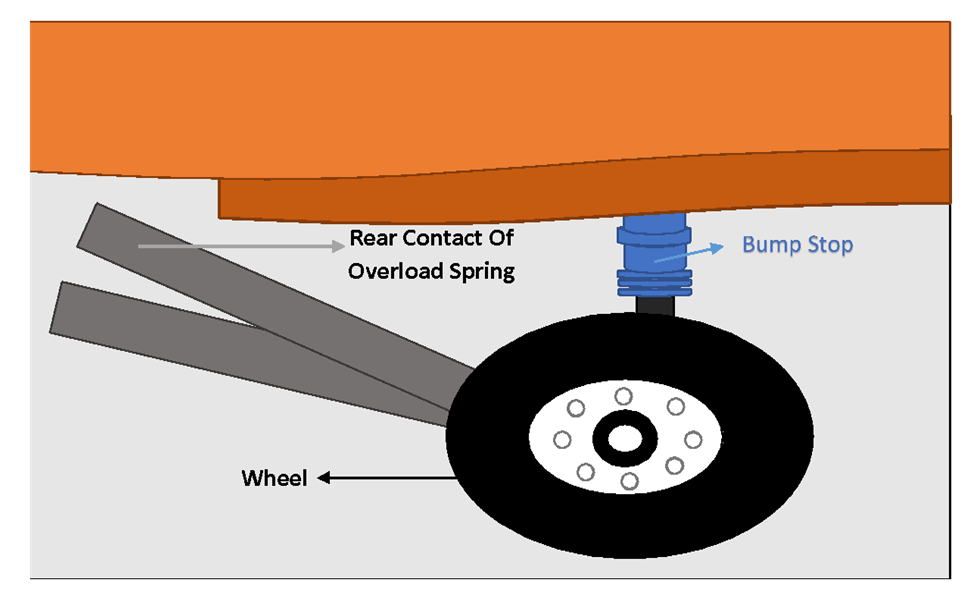

And it’s when the rear suspension shows major squeak. The thing is tracking down towards the overload springs rear bump stop. You may notice that in the fully loaded camper, there’s no contact of the overload front bump stop while the rear one does.

And the spring having a curve will cause missing the rubber portion. Instead, it contacts the bracket’s rear portion. Now the overload spring bump stops noise that seems to be coming from metal-on-metal contact. And that could happen for both sides.

Also Read: How To Make A Torsion Bar Unloading Tool- Set The Tool At Home

In this situation, someone will wonder if there’s an existence of a different bracket. And also, about the possibility of ding certain angle remounting of the bracket.

Now about the solution. In most cases, the scene demand actually considering whether there’s even a need for overload or not. Having installed a set of airbags, while leaving or removing the overload, can solve the situation.

You should consider the airbag solution because there are 3 benefits of this decision you get

  • Simply carrying a tiny compressor will make way for using the bags as something compatible to level the truck as well as a camper during camping.
  • Since you can level the truck, there’s no need for any adjustments to the headlights during carrying loads.
  • And the most important one, no more squeak problem, and that too without the need of any overloads.

A Helpful Tutorial You May Need!

Frequently Asked Question (FAQs)

Do bump stops work?

Definitely, they do! This part is in charge of making sure the suspension system of your vehicle stays in tiptop condition. And the same goes for shock absorbers, bump stops keep them in great shape. Any blow from bottoming out is also softened by the bump stop.

What is the purpose of a bump stop on a shock?

Whenever there’s a limit on the vertical movement of a resisting stirring rate, the bump stop helps by steepening it. And this sidesteps shock impact. Also, it helps in eliminating any damage to the components of the suspension.

When should you upgrade bump stops?

Even rigid bump stops will start to wear out with frequent use. And so, you should look for any sign of damage, if there’s any difficulty with the ride or even noisy bottom-outs. All of these could indicate a need for upgrading bump stops.

Can you drive without bump stops?

While it is possible to ride without bump stops, one should still consider not going that route. Because both for practical and safety reasons riding with bump stop is important.

Wrapping Up

And with that being said, we are by the end of this guide dedicated to overload spring bump stops. This part is often overlooked. But it’s definitely one significant component that goes for keeping rides comfortable as well as for the purpose of well-maintaining suspension.

So, this simple device should be installed and regularly inspected and you must take careful measurements whenever there’s an issue with it to solve things as soon as possible.

On that note, we will be leaving for today! See You Again Soon in Another Similar Piece!
